1. What Exactly Is JTAG, Anyway?

Okay, let’s break this down. JTAG stands for Joint Test Action Group. Sounds pretty official, right? In essence, it’s a standardized interface that was initially created for testing integrated circuits (ICs) after manufacturing. Think of it like a doctor checking a patient after surgery to make sure everything’s working as it should. But over time, clever engineers realized its potential extended far beyond just testing. It’s like discovering that your Swiss Army knife can also start a fire and make a gourmet sandwich.

The beauty of JTAG lies in its ability to access internal components of a chip, even when the chip is embedded in a larger system. This is done through a special serial communication protocol. Instead of having to probe around with tiny wires (which can be a nightmare), you can use JTAG to send commands and data directly to the chip. Imagine trying to navigate a maze blindfolded versus having a drone’s-eye view; that’s the difference JTAG provides.

So, the primary purpose of JTAG, at its core, remains testing. Verifying the integrity of connections, identifying faults, and ensuring that each component is performing its intended function. However, the access it grants goes beyond simple pass/fail checks. It allows a level of control and insight that has opened doors to a multitude of other applications, and that’s where the programming angle comes in.

Think of it this way: JTAG is like having a master key to a building. Initially, the key was intended only for the building inspector. But then, the maintenance crew realized they could use it to adjust the thermostat, the IT department could use it to reset the network, and even the CEO could sneak in late at night for a clandestine snack raid. JTAG allows a level of access thats exploited in myriad ways.

Routing JTAG Ensuring A Successful Layout Of Our Favorite Debug

The Programming Angle

2. From Testing to Taskmaster

Now for the big question: can JTAG be used for programming? The answer is a resounding yes, with a few caveats, naturally. While JTAG wasnt designed as a primary programming interface, its ability to access and manipulate internal memory makes it an incredibly useful tool for flashing firmware, debugging code, and even reverse engineering devices. Think of it like this: its like using a side door to enter a building rather than the main entrance.

The key to JTAG programming lies in its control over memory access. You can use it to write data directly to the flash memory of a microcontroller or processor. This is particularly useful when other programming methods are unavailable or impractical. For example, if a device is bricked due to a corrupted bootloader, JTAG can often be used to recover it by flashing a new bootloader image. Its the digital equivalent of reviving someone with CPR. Or maybe just giving them a caffeine boost.

Moreover, JTAG is invaluable for debugging embedded systems. It allows you to step through code, examine memory contents, and set breakpoints, all while the target device is running. This level of visibility is essential for identifying and fixing bugs that might be difficult or impossible to track down otherwise. It’s like having an X-ray vision to see exactly whats going on inside the machines brain.

In practice, JTAG programming involves using specialized hardware and software tools. These tools communicate with the target device through the JTAG interface, allowing you to upload and execute code, read and write memory, and perform other debugging operations. It’s not quite as simple as dragging and dropping files, but with the right setup, its a powerful technique to be able to wield when things go sideways.

Locking It Down EFuses And JTAG For Secure Device Configuration By

Practical Applications

3. Where Does JTAG Shine? The Nitty-Gritty (Okay, Almost Nitty-Gritty)

So, where exactly does JTAG shine in the real world? Well, it’s a staple in embedded systems development. Think of all those devices around you every day, from your smartphone to your smart fridge — many of them rely on JTAG for programming and debugging during the development process. It’s the unsung hero behind the scenes, ensuring your tech gadgets function properly.

Another area where JTAG plays a crucial role is in reverse engineering and security research. Because it allows access to internal memory and registers, it can be used to analyze the firmware and hardware of a device. Security researchers often use JTAG to uncover vulnerabilities and find ways to exploit them, which then allows manufacturers to patch them and improve security. It’s a bit like catching burglars before they break into your house.

Moreover, JTAG is often used in manufacturing to program devices after they’ve been assembled. This allows manufacturers to customize the firmware and configure the device for specific applications. It can also be used for quality control to ensure that each device is functioning correctly before it’s shipped to customers. It’s the final checkmark on the assembly line.

Also, consider field updates. JTAG enables remote firmware updates on deployed devices without requiring physical access. This is a major benefit for systems in remote locations or those that are difficult to access physically. Imagine updating the software on a satellite in orbit; that’s where JTAG’s remote access capabilities really shine. It is really handy in circumstances that regular update protocols are not working.

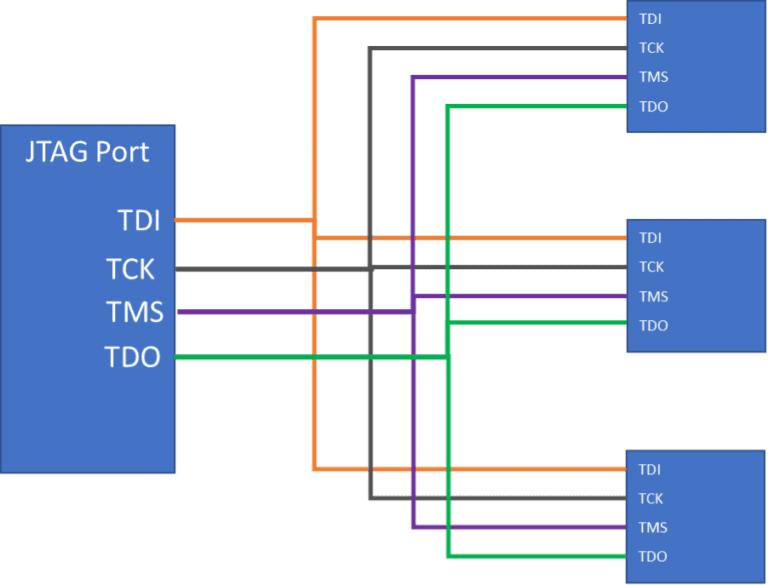

MultiDevice JTAG Chaining

Challenges and Considerations

4. It’s Not Always a Walk in the Park

Despite its power and versatility, JTAG isn’t without its challenges. One of the main obstacles is the complexity of the JTAG protocol itself. It can be tricky to set up and configure the JTAG interface, especially if you’re not familiar with the underlying hardware. It’s a bit like trying to assemble IKEA furniture without the instructions — frustrating if not completely impossible.

Another challenge is the availability of JTAG access. Not all devices expose their JTAG interface. Some manufacturers intentionally disable or obfuscate JTAG access to prevent reverse engineering or unauthorized modification of their products. This can make it difficult or impossible to use JTAG for programming or debugging, requiring you to get more creative.

Security is also a concern. If JTAG access is not properly secured, it can be exploited by attackers to gain unauthorized access to the device. This could allow them to steal sensitive data, install malware, or even take control of the device completely. It’s important to implement appropriate security measures to protect the JTAG interface.

Furthermore, JTAG programming can be slower than other programming methods, such as using a dedicated programmer or a USB interface. This is because JTAG relies on serial communication, which is inherently slower than parallel communication. But hey, sometimes, you have to choose the slow and steady path to get there.

What Is JTAG And How Can I Make Use Of It? XJTAG Tutorial

FAQ

5. Got Questions? We’ve (Hopefully) Got Answers!

Still scratching your head about JTAG? Here are a few common questions to clear things up:

Q: Is JTAG only for programming microcontrollers?

A: Not at all! While microcontrollers are a common target, JTAG can be used to program a wide range of devices, including processors, FPGAs, and even ASICs. It’s a versatile interface that can be adapted to different types of hardware.

Q: Do I need special hardware to use JTAG?

A: Yes, you’ll need a JTAG debugger or programmer, which is a device that connects to your computer and the target device through the JTAG interface. There are many different JTAG debuggers available, ranging from inexpensive hobbyist-grade tools to high-end professional equipment.

Q: Is JTAG programming difficult?

A: It can be, especially if you’re new to embedded systems. However, with the right tools and documentation, it’s definitely achievable. There are plenty of resources available online, including tutorials, example code, and forums where you can ask for help. Remember, even rocket scientists had to start somewhere.

Q: Can JTAG be used to unlock a phone?

A: While JTAG can potentially be used to bypass certain security measures on a phone, it’s not a straightforward process and often requires specialized knowledge and equipment. Moreover, unlocking a phone using JTAG may violate the terms of service of the phone manufacturer or carrier, so proceed with caution and always research the legal implications before attempting to do so.
